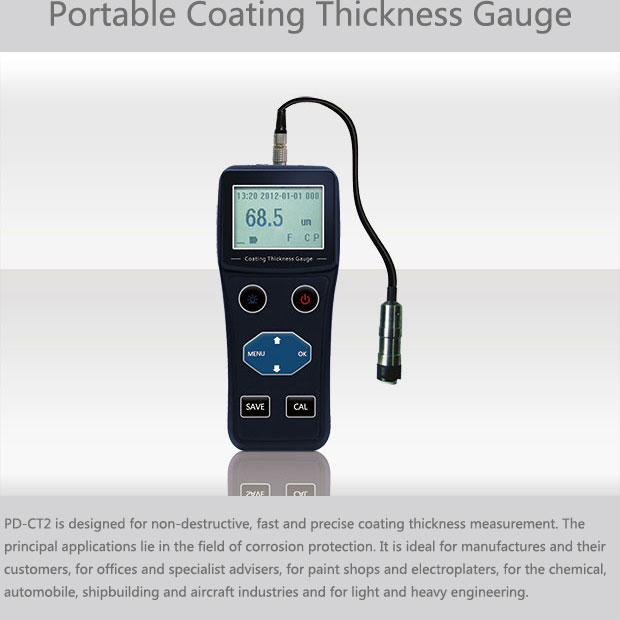

| • High precision sample chip and dedicated temperature compensation model used for high precision measurement • Efficient filtering algorithm used for Anti-electromagnetic interference • Probe can be re-matched with the machine after wear • Mini-USB interface used for communication • Support online measurement • Contrast adjustable and backlight selectable • Host Software upgradable Top Swiss Replica Watches UK site: topwatches.me replicaluxury.net | • Measuring range: 0 - 1500 um for F type, 0 - 1500 um for N type (normal usage), 0 - 40 um for N type (Copper covered with chrome plate) • Min. radius of curvature: Bulge 1.5 mm for F type, Bulge 3 mm for N type • Min. radius of area: Φ7 for F type, Φ5 for N type • Displaying accuracy: 0.1 um / 0.0001 mil • Measuring error: ±(2% * H + 1) um • Measurement period: 3 times per second • Display: FSTN digital LCD with backlight • Display contents: Thickness, Time, Stability, Battery, Measuring Mode, Probe type, temperature compensaion indicator, file storage, etc. • Storage: 500 measurements, including thickness, time, probe type, etc. • Communication: Mini-USB interface, virtual serial port protocol, support online measurement, host software upgradable • Power Supply: 3 * AAA alkaline batteries • Power off: Timeout power off, and low battery power off • Temperature: Usage: -10 ~ 50 °C, Store: -30 ~ 60 °C • Shape size: 150mm * 70mm * 30mm • Material: ABS and PC alloy • Weight: 180g bingwatches.com watchescopy.net |
 | |
| • High Precision Single Point Measurement, Scan Mode, Average Mode, Differential Mode and Alarm Mode support • Zero Calibration,Two-Point Calibration and Basic Calibration can be used for system error auto correction • Thickness and time information can be stored completely • Stability indicator for measuring status monitoring • Battery indicator for battery quantity monitoring • Able to communicate with PC • Able to print measurements with optional portable thermal printers getreplica.org aawatches.uk | |
